간단한 어셈블리어 모음

아니 C++ 공부하는데 어셈블리가 어떻게 돌아가는지 알아야하는 상황에서 어셈블리어를 모르니 답답할 지경이다ㅠㅠ

나름 포탈용으로 하나 마련하기 위해 게시하였다. - 새로 알게되면 계속 업데이트 예정임 ㅋㅋㅋ



push, pop에 의해 4씩 변한다.



mov A, B - A에 B를 복사하라

add A, B - A에 B만큼 더해서 저장하라

sub A, B - A에 B만큼 빼서 저장하라

push A - 스택에 A값을 넣어라 -> intel Cpu 환경 내에서(스택이 쌓일 수록 포인터가 내려간다) ESP가 4씩 차감된다.

pop A - esp의 4만큼의 값을 A에 넣어라 후에 esp는 4 추가된다 -> 자료구조 Stack, Pop과 같은 연산





Extended 는 32비트 이상에서 붙는 용어

eax (Extended Accumulator Register) - 각종 산술, 논리 연산 저장을 위한 레지스터

ebx (Extended Base Register) - 지정된 주소값을 저장하기 위한 레지스터

= 원문 [ BX is known as the base register, as it could be used in indexed addressing. ] indexed addressing??

ecx (Extended Counter Register) - 횟수 저장을 위한 레지스터

edx (Extended Data Register) - 큰 값이나 eax와 함께 곱하기나 나누기 연산 저장을 위한 레지스터



esp (Extended Stack Pointer)_ 스택의 마지막 포인터

ebp (Extended Base Pointer)_ 스택의 시작 포인터

esi (Extended Source Index)_ 소스 주소 첨삭 시에 저장

edi (Extended Destination Index)_ 목적지 주소를 첨삭 시에 저장



여기까지 출처_

Assembly - Registers - Tutorialspoint





Processor operations mostly involve processing data. This data can be stored in memory and accessed from thereon. However, reading data from and storing data into memory slows down the processor, as it involves complicated processes of sending the data request across the control bus and into the memory storage unit and getting the data through the same channel.

To speed up the processor operations, the processor includes some internal memory storage locations, called registers.

The registers store data elements for processing without having to access the memory. A limited number of registers are built into the processor chip.

Processor Registers

There are ten 32-bit and six 16-bit processor registers in IA-32 architecture. The registers are grouped into three categories −

• General registers,
• Control registers, and
• Segment registers.

The general registers are further divided into the following groups −

• Data registers,
• Pointer registers, and
• Index registers.

Data Registers

Four 32-bit data registers are used for arithmetic, logical, and other operations. These 32-bit registers can be used in three ways −

• As complete 32-bit data registers: EAX, EBX, ECX, EDX.

• Lower halves of the 32-bit registers can be used as four 16-bit data registers: AX, BX, CX and DX.

• Lower and higher halves of the above-mentioned four 16-bit registers can be used as eight 8-bit data registers: AH, AL, BH, BL, CH, CL, DH, and DL.

Some of these data registers have specific use in arithmetical operations.

AX is the primary accumulator; it is used in input/output and most arithmetic instructions. For example, in multiplication operation, one operand is stored in EAX or AX or AL register according to the size of the operand.

BX is known as the base register, as it could be used in indexed addressing.

CX is known as the count register, as the ECX, CX registers store the loop count in iterative operations.

DX is known as the data register. It is also used in input/output operations. It is also used with AX register along with DX for multiply and divide operations involving large values.

Pointer Registers

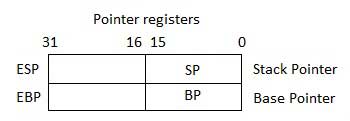

The pointer registers are 32-bit EIP, ESP, and EBP registers and corresponding 16-bit right portions IP, SP, and BP. There are three categories of pointer registers −

• Instruction Pointer (IP) − The 16-bit IP register stores the offset address of the next instruction to be executed. IP in association with the CS register (as CS:IP) gives the complete address of the current instruction in the code segment.

• Stack Pointer (SP) − The 16-bit SP register provides the offset value within the program stack. SP in association with the SS register (SS:SP) refers to be current position of data or address within the program stack.

• Base Pointer (BP) − The 16-bit BP register mainly helps in referencing the parameter variables passed to a subroutine. The address in SS register is combined with the offset in BP to get the location of the parameter. BP can also be combined with DI and SI as base register for special addressing.

Index Registers

The 32-bit index registers, ESI and EDI, and their 16-bit rightmost portions. SI and DI, are used for indexed addressing and sometimes used in addition and subtraction. There are two sets of index pointers −

• Source Index (SI) − It is used as source index for string operations.

• Destination Index (DI) − It is used as destination index for string operations.

Control Registers

The 32-bit instruction pointer register and the 32-bit flags register combined are considered as the control registers.

Many instructions involve comparisons and mathematical calculations and change the status of the flags and some other conditional instructions test the value of these status flags to take the control flow to other location.

The common flag bits are:

• Overflow Flag (OF) − It indicates the overflow of a high-order bit (leftmost bit) of data after a signed arithmetic operation.

• Direction Flag (DF) − It determines left or right direction for moving or comparing string data. When the DF value is 0, the string operation takes left-to-right direction and when the value is set to 1, the string operation takes right-to-left direction.

• Interrupt Flag (IF) − It determines whether the external interrupts like keyboard entry, etc., are to be ignored or processed. It disables the external interrupt when the value is 0 and enables interrupts when set to 1.

• Trap Flag (TF) − It allows setting the operation of the processor in single-step mode. The DEBUG program we used sets the trap flag, so we could step through the execution one instruction at a time.

• Sign Flag (SF) − It shows the sign of the result of an arithmetic operation. This flag is set according to the sign of a data item following the arithmetic operation. The sign is indicated by the high-order of leftmost bit. A positive result clears the value of SF to 0 and negative result sets it to 1.

• Zero Flag (ZF) − It indicates the result of an arithmetic or comparison operation. A nonzero result clears the zero flag to 0, and a zero result sets it to 1.

• Auxiliary Carry Flag (AF) − It contains the carry from bit 3 to bit 4 following an arithmetic operation; used for specialized arithmetic. The AF is set when a 1-byte arithmetic operation causes a carry from bit 3 into bit 4.

• Parity Flag (PF) − It indicates the total number of 1-bits in the result obtained from an arithmetic operation. An even number of 1-bits clears the parity flag to 0 and an odd number of 1-bits sets the parity flag to 1.

• Carry Flag (CF) − It contains the carry of 0 or 1 from a high-order bit (leftmost) after an arithmetic operation. It also stores the contents of last bit of a shift or rotate operation.

The following table indicates the position of flag bits in the 16-bit Flags register:

Flag:Bit no:

O	D	I	T	S	Z	A	P	C
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0

Segment Registers

Segments are specific areas defined in a program for containing data, code and stack. There are three main segments −

• Code Segment − It contains all the instructions to be executed. A 16-bit Code Segment register or CS register stores the starting address of the code segment.

• Data Segment − It contains data, constants and work areas. A 16-bit Data Segment register or DS register stores the starting address of the data segment.

• Stack Segment − It contains data and return addresses of procedures or subroutines. It is implemented as a 'stack' data structure. The Stack Segment register or SS register stores the starting address of the stack.

Apart from the DS, CS and SS registers, there are other extra segment registers - ES (extra segment), FS and GS, which provide additional segments for storing data.

In assembly programming, a program needs to access the memory locations. All memory locations within a segment are relative to the starting address of the segment. A segment begins in an address evenly divisible by 16 or hexadecimal 10. So, the rightmost hex digit in all such memory addresses is 0, which is not generally stored in the segment registers.

The segment registers stores the starting addresses of a segment. To get the exact location of data or instruction within a segment, an offset value (or displacement) is required. To reference any memory location in a segment, the processor combines the segment address in the segment register with the offset value of the location.

Example

Look at the following simple program to understand the use of registers in assembly programming. This program displays 9 stars on the screen along with a simple message −

 Live Demosection .text global _start ;must be declared for linker (gcc) _start: ;tell linker entry point mov edx,len ;message length mov ecx,msg ;message to write mov ebx,1 ;file descriptor (stdout) mov eax,4 ;system call number (sys_write) int 0x80 ;call kernel mov edx,9 ;message length mov ecx,s2 ;message to write mov ebx,1 ;file descriptor (stdout) mov eax,4 ;system call number (sys_write) int 0x80 ;call kernel mov eax,1 ;system call number (sys_exit) int 0x80 ;call kernel section .data msg db 'Displaying 9 stars',0xa ;a message len equ $ - msg ;length of message s2 times 9 db '*'

When the above code is compiled and executed, it produces the following result −

Displaying 9 stars *********
